Place of Origin : Guangdong,China
Brand Name : LINK-PP
Certification : UL,RoHS,Reach,ISO
Model Number : ALAN-134
MOQ : 400/2000/10K/25K
Price : $0.06-$3.2
Packaging Details : T&R
Delivery Time : Stock
Payment Terms : TT,NET30/60/90 Days
Supply Ability : 3KK/Month
Specifications : ALAN-134
Speed : 10/100 BASE-T
Application : Lan Ethernet (NoN PoE/PoE/PoE+)
Package : SMT
Temperature : 0 TO + 70℃/- 40 TO + 85℃
Archivi Disponibili : PDF/3D/ISG/Stp/Step/Datasheet
  1. Coil Number: Autotransformer
  2. Isolation Voltage:1500Vrms
  3. Type:SMT
4. Coil Structure : Toroidal
5. Free Samples Are Available

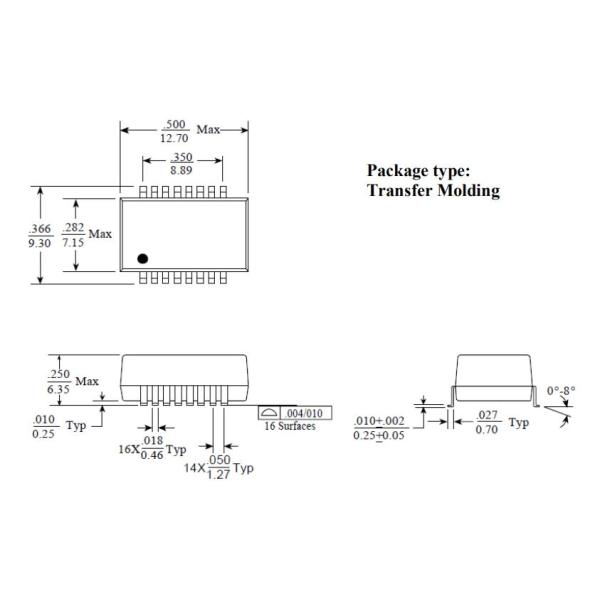

6. Package type : Transfer Molding
Description:
|   			 Application  |   			  			 ALAN-134  |
|   			 AutomDX  |   			  			 YES  |
|   			 Comment  |   			  			 RoHS Compliant LPXXXXNL  |
|   			 Configuration RX  |   			  			 T,C  |
|   			 Configuration TX  |   			  			 T,C  |
|   			 Construction  |   			  			 TRANSFER MOLD  |
|   			 Cores Per Port  |   			  			 4  |
|   			 Number of Ports  |   			  			 QUAD  |
|   			 PCB  |   			  			 NO PCB  |
|   			 Package  |   			  			 SMT  |
|   			 Profile Feature  |   			  			 Pb-Free Assembly  |
|   			 Temperature Min (Ts min)  |   			  			 150°C  |
|   			 Temperature Max (Ts max)  |   			  			 200°C  |
|   			 Time (ts min to ts max)  |   			  			 60-180 seconds  |
|   			 Package Width (Inches)  |   			  			 0.63 or other  |
|   			 Package Width (mm)  |   			  			 16.002 or other  |
|   			 Package Length (mm)  |   			  			 28.448 or other  |
|   			 RoHS Compliant  |   			  			 YES-RoHS-6  |
|   			 Temperature  |   			  			 0 TO 70/-40 To +85  |
|   			 Turns Ratio RX  |   			  			 1CT:1CT  |
|   			 Turns Ratio TX  |   			  			 1CT:1CT  |
|   			 Speed  |   			  			 10/100M  |
Applications:
  Used for networking and communication equipments such as HUB, PC card, Switch,
  Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem

Competitive Advantage:
  16 years production experience,
1100 staff,
100% test
Flexible delivery time

ATTENTION:
Abracon Corporation’s products are COTS – Commercial-Off-The-Shelf products; suitable for Commercial, Industrial and, where designated, Automotive Applications.
  Abracon’s products are not specifically designed for Military, Aviation, Aerospace, Life-dependant Medical applications or any application requiring high reliability where component
  failure could result in loss of life and/or property. For applications requiring high reliability and/or presenting an extreme operating environment, written consent and authorization from
  Abracon Corporation is required. Please contact Abracon Corporation for more information.
|
                                             |

                        ALAN-134 Single Port 10/100 Base-TX Transformer For Ethernet Isolation LAN Interface Images |
